DC Backward Centrifugal FansΦ310

Inquiry Form

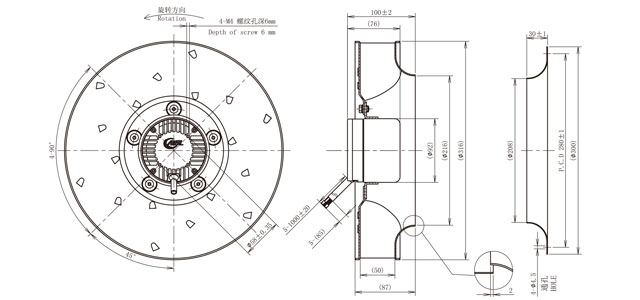

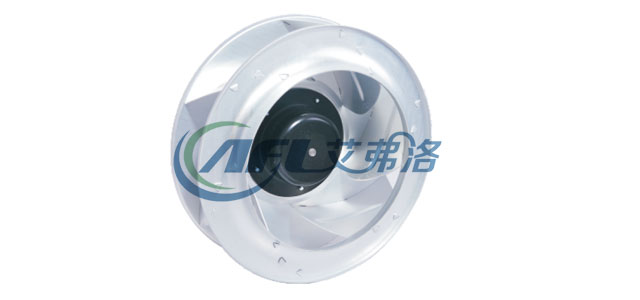

DC310-datu DC310-erwei

Meterial: Galvanised sheet steel

Type of protection IP42

Approvals CCC CE

Insulation class B
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.

Specifications
TypeCurveNominal voltageSpeedPower inputCurrent
draw
Sound pressure levelPemamb. terap.
B3P310-DC092-007[DC][rpm][w][A][dB][℃]
31018201150.3767-25~+60

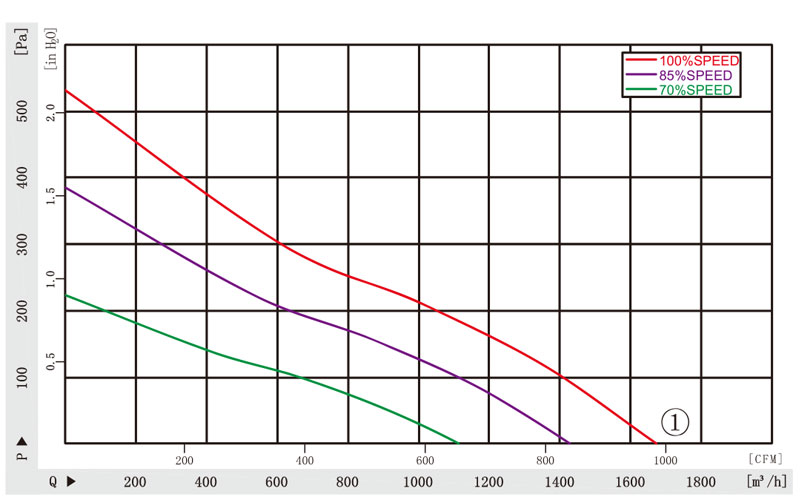

Curves

SIGNALCOLORSPEC
VsREDDC310V
GNDBLACKGND
VccWHITEDC15V
VspYELLOW0-10VDC/PWM
TACHBLUE12 Pulse/R

DC310-quxian
