B3P400-DC102-001 DC Backward Centrifugal FansΦ400

Inquiry Form

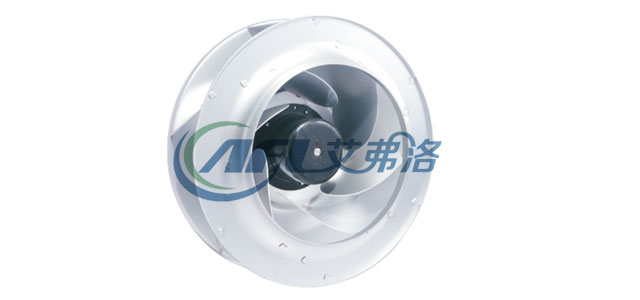

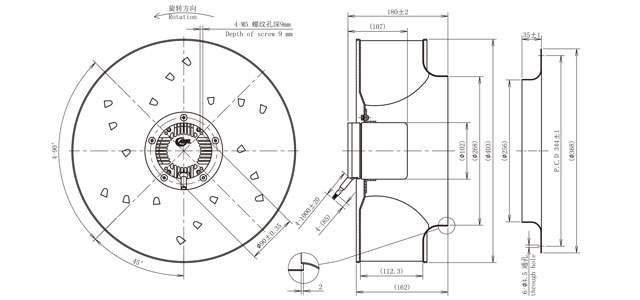

DC400A-datuDC400A-erwei

Meterial: Sheet aluminium

Type of protection IP42

Approvals CCC CE

Insulation class B

Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.

Specifications
TypeCurveNominal voltageSpeedPower inputCurrent
draw
Sound pressure levelPemamb. terap.
B3P400-DC102-001[VDC][rpm][W][A][dB][℃]
4812502304.7963-25〜+60

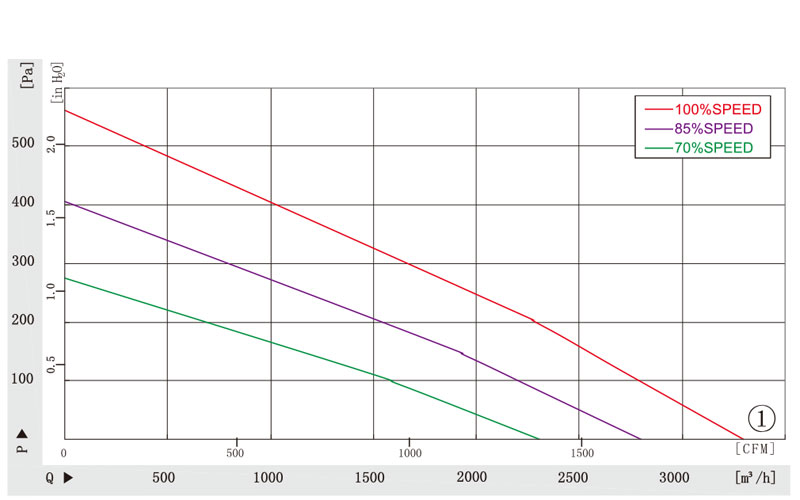

Curves

SIGNALCOLORSPEC
VsREDDC48V
GNDBLACKGND
VccWHITEDC15V
VspYELLOW0-10VDC/PWM
TACHBLUE3 Pulse/R

DC400A-quxian
