Model 146 DC dual inlet forward centrifugal air blower fan

Inquiry Form

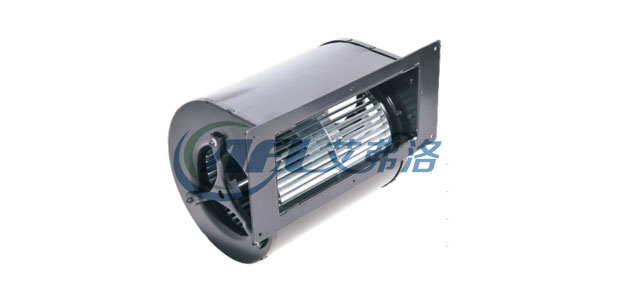

DC146A-datu

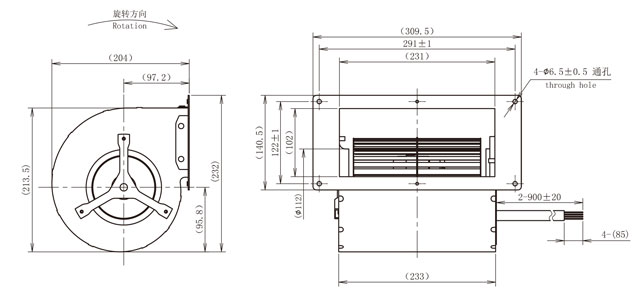

DC146A-erwei

Meterial: Galvanised sheet steel

Type of protection IP42

Approvals CCC CE

Insulation class B

Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.

Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.

AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.

Specifications
TypeCurve Nominal voltageSpeedPower inputCurrent
draw
Sound pressure levelPerm. amb.
tenip.
  [VAC][rpm][W][A][dB][℃]
F3P146-DC092-0012414501054.461-25〜+60
F3P146-DC092-0004814501052.261-25〜+60

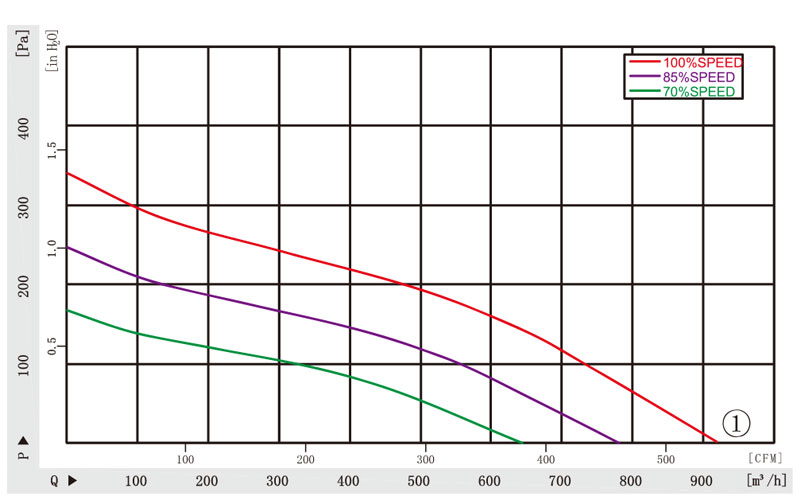

Curves

SIGNALCOLORSPEC
VsREDDC48V
VspYELLOW0-10VDC/PWM
GNDBLUEGND
TACHWHITE3 Pulse/R

DC146A-quxian
