High quality DC Dual Inlet Forward Centrifugal Fans

Inquiry Form

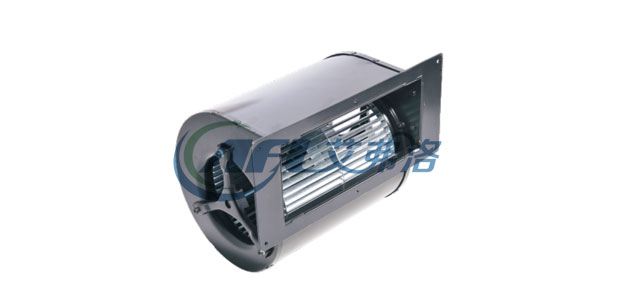

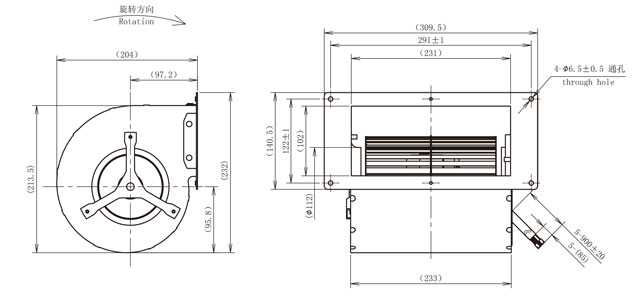

DC146-datu DC146-erwei

Meterial: Galvanised sheet steel

Type of protection IP42

Approvals CCC CE

Insulation class B
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.

Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.

AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.

Specifications
TypeCurve Nominal voltageSpeedPower inputCurrent
draw
Sound pressure level

Perm. amb.
tenip.

F3P146-DC092-004[DC][rpm][W][A][dB][℃]
31018401600.5267-25~+60

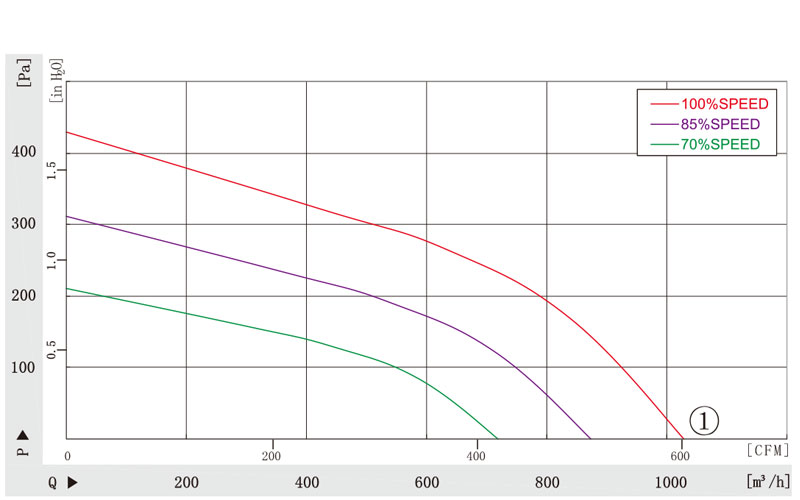

Curves

SIGNALCOLORSPEC
VsREDDC310V
GNDBLACKGND
VccWHITEDC15V
VspYELLOW0-10VDC/PWM
TACHBLUE12 Pulse/R

DC146-quxian
