Meterial: Galvanised sheet steel
Type of protection: IP42
Approvals: CCC CE
Insulation class: B
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.
Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.
AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.
Specifications | |||||||
Type | Curve | Nominal voltage | Speed | Power input | Current draw |
Sound pressure level | Perm. amb. tenip. |
[VAC] | [rpm] | [W] | [A] | [dB] | [℃] | ||
F3P133-DC092-001 | ① | 24 | 2040 | 48 | 2.0 | 63 | -25〜+60 |
F3P133-DC092-000 | 48 | 2040 | 48 | 1.0 | 63 | -25〜+60 |

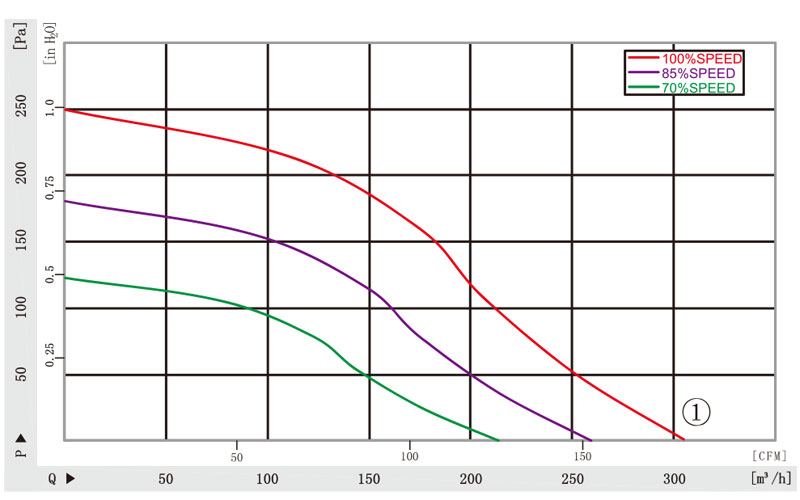

Curves
SIGNAL | COLOR | SPEC |
Vs | RED | DC48V |
Vsp | YELLOW | 0-10VDC/PWM |
GND | BLUE | GND |
TACH | WHITE | 3 Pulse/R |
