140 dc 24v 48v forward curved single inlet Centrifugal fan

Inquiry Form

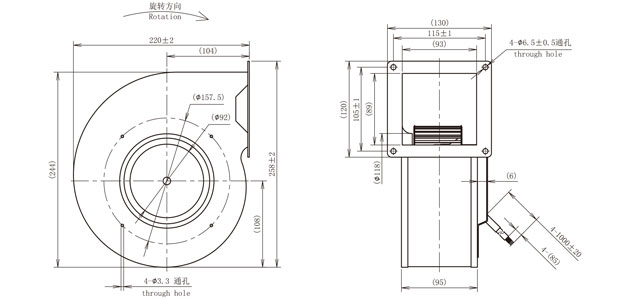

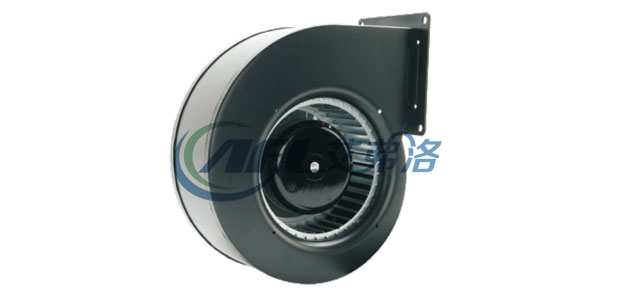

DC140A-datu DC140A-erwei

Meterial: PA66

Type of protection IP42

Approvals CCC CE

Insulation class B
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.

Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.

AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.

Specifications
TypeCurve Nominal voltageSpeedPower inputCurrent
draw
Sound pressure levelPerm. amb.
tenip.
[VAC][rpm][W][A][dB][℃]
F3P140-DC092-001242200753.1265-25〜+60
F3P140-DC092-000482200751.5665-25〜+60

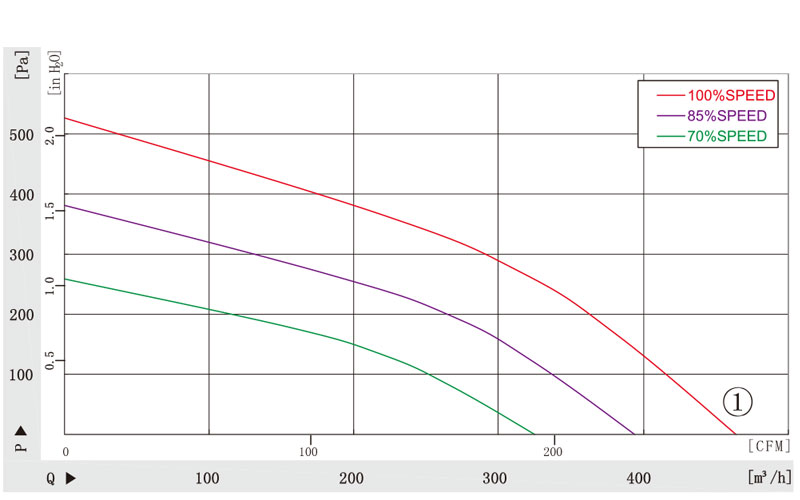

Curves

SIGNALCOLORSPEC
VsREDDC48V
VspYELLOW0-10VDC/PWM
GNDBLUEGND
TACHWHITE3 Pulse/R

DC140A-quxian
