EC external rotor motor duct axial fan with speed controller

Inquiry Form

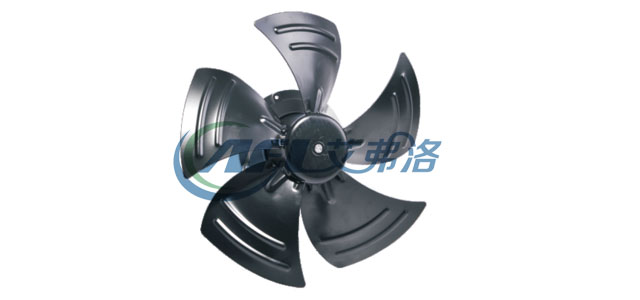

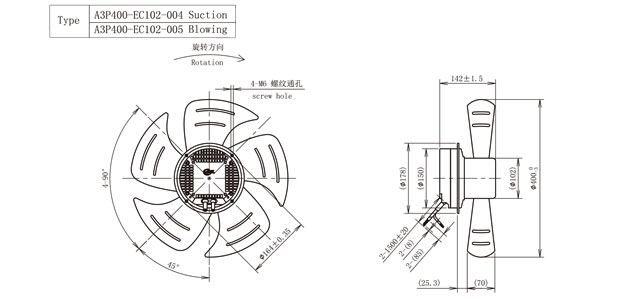

ECA400-datu ECA400-erwei

Meterial: Sheet steel

Type of protection IP44

Approvals CCC CE

Insulation class B
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.

 Specifications
TypeCurveNominal voltageFrequencySpeedPower inputCurrent drawSound pressure levelPerm. amb. temp.
A3P400-EC1024-***[VAC][Hz][rpm][W][A][dB][℃]
22050/6016003151.469-25〜+60

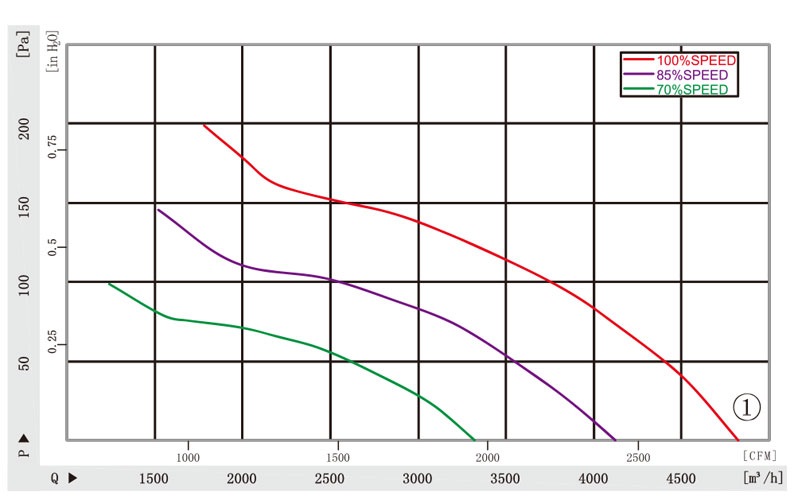

Curves

SIGNALCOLORSPEC
LBROWMAC220V
50/60Hz
NBLUEAC220V
50/60Hz
PEYBLLOf/GREENEARTH
VccREDDC10V
VspYELLOW0-10VDC/PWM
GNDBLUEGND
FGWHITE1 Pulse/R

ECA400-quxian

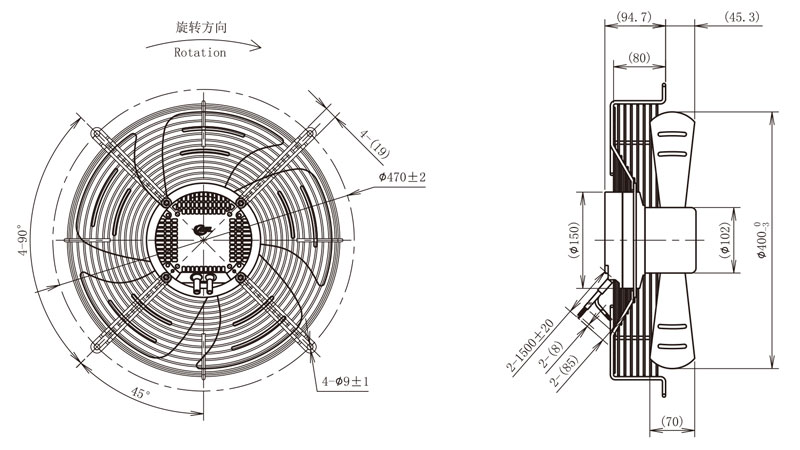

With wall concave net cover grill
TypeA3P400-EC102-000 Suction
A3P400-EC102-001 Blowing
ECA400-erwei1

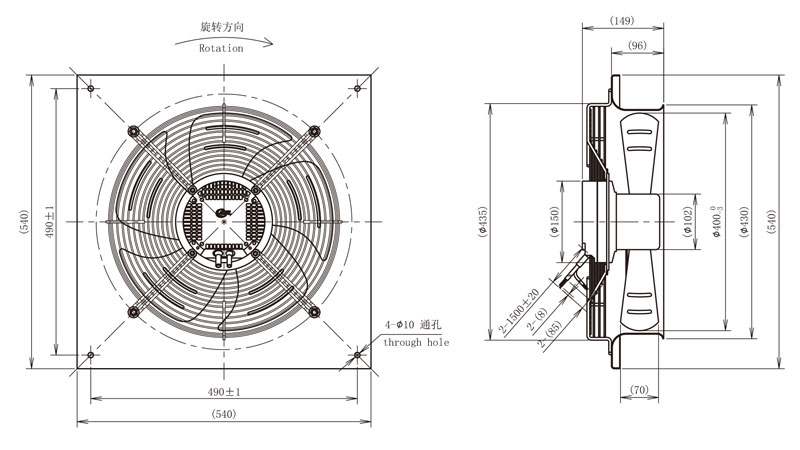

With wall concave net cover grill
TypeA3P400-EC102-002 Suction
A3P400-EC102-003 Blowing
ECA400-erwei2
