EC external rotor motor tube axial flow fan

Inquiry Form

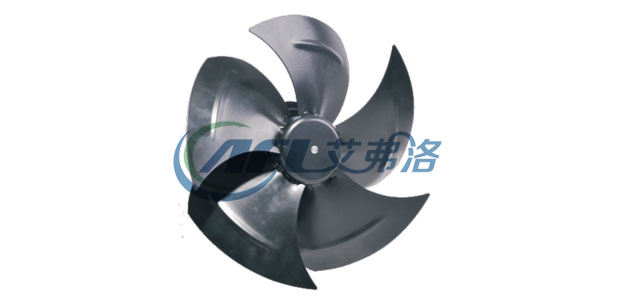

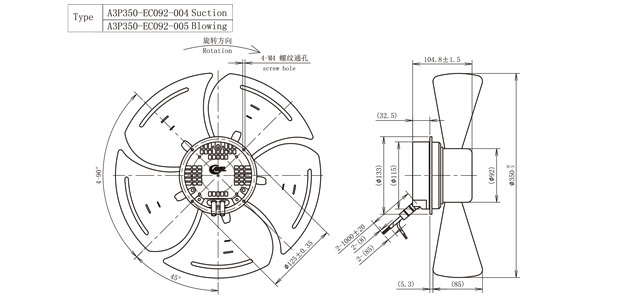

ECA350-datu ECA350-erwei1

Meterial: Sheet steel

Type of protection IP44

Approvals CCC CE

Insulation class B
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.

 Specifications
Type Curve Nominal voltage Frequency Speed Power input Current draw Sound pressure level Perm. amb. temp.
A3P350-EC092-*** [VAC] [Hz] [rpm] [W] [A] [dB] [℃]
220 50/60 1730 160 1.2 65 -25〜十60

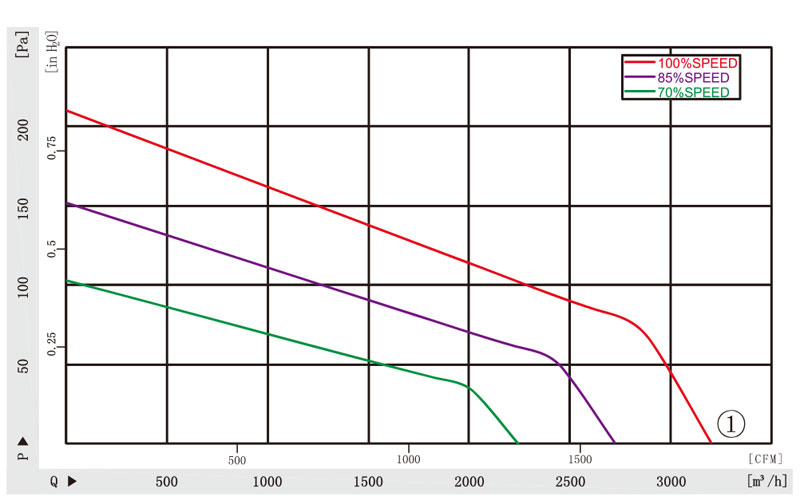

Curves

SIGNAL COLOR SPEC
L BROWM AC220V
50/60Hz
N BLUE AC220V
50/60Hz
PE YBLLOf/GREEN EARTH
Vcc RED DC10V
Vsp YELLOW 0-10VDC/PWM
GND BLUE GND
FG WHITE 1 Pulse/R

ECA350-quxian

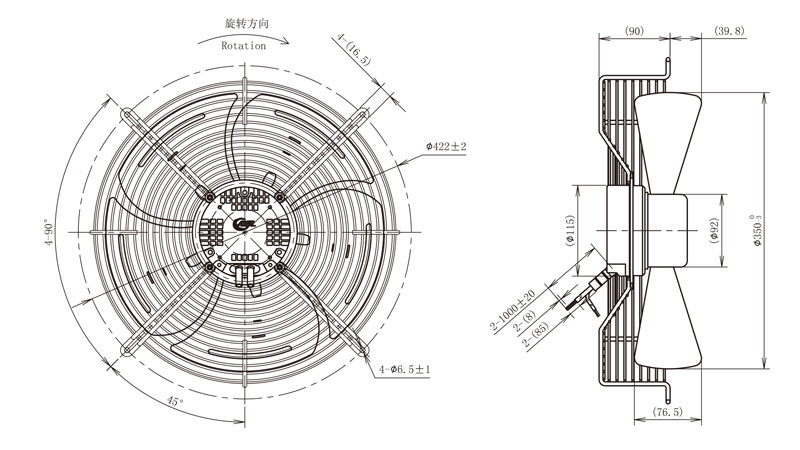

With wall concave net cover grill
Type A3P350-EC092-000 Suction
A3P350-EC092-001 Blowing
ECA350-erwei2

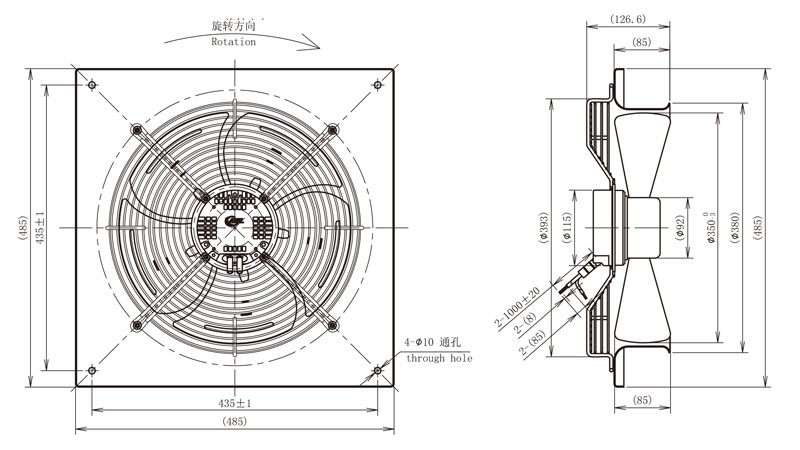

With wall concave net cover grill
Type A3P350-EC092-002 Suction
A3P350-EC092-003 Blowing
ECA350-erwei3
