Galvanised sheet steel Constant Airflow EC

Inquiry Form

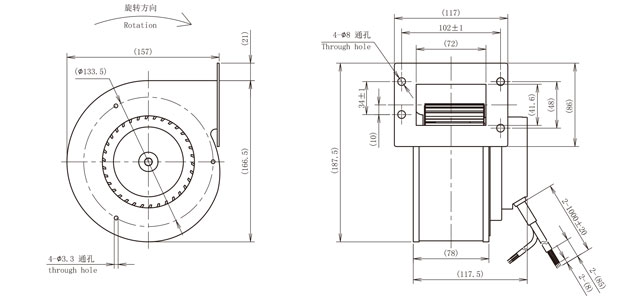

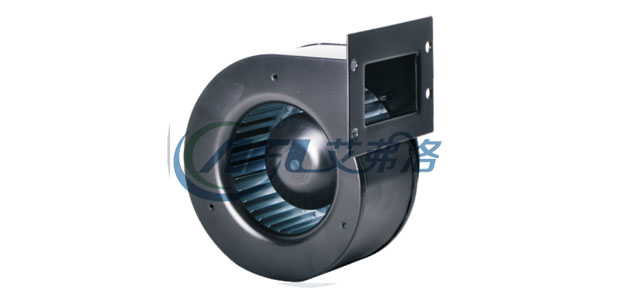

DC120-datu DC120-erwei

Meterial; Galvanised sheet steel

Type of protection IP44

Approvals CCC CE

Insulation class B
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.

Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.

AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.

 Specifications
Type Curve Nominal voltage Frequency Speed Power input Current draw Sound pressure level Perm. amb. temp.
F3P120-EC072-000 [VAC] [Hz] [rpm] [W] [A] [dB] [℃]
220 50/60 2000 26 0.2 60 -25〜+60

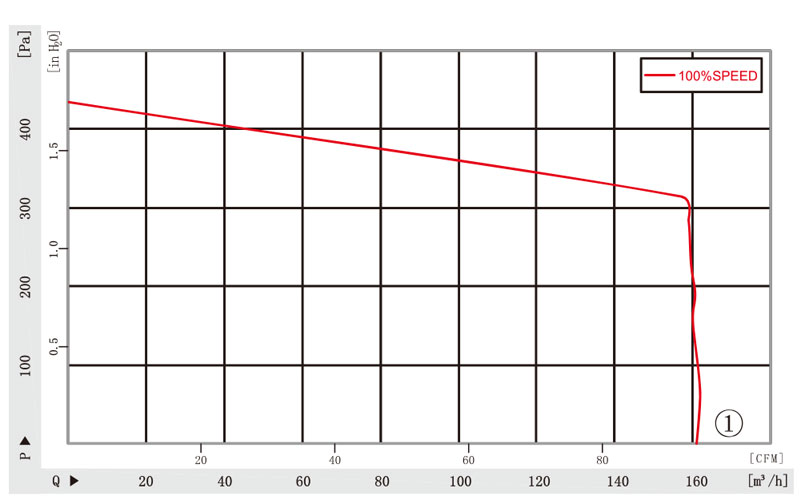

Curves

SIGNAL COLOR SPEC
L BROWM AC220V
50/60Hz
N BLUE AC220V
50/60Hz
PE YBLLOf/GREEN EARTH
Vcc RED DC10V
Vsp YELLOW 0-10VDC/PWM
GND BLUE GND
FG WHITE 1 Pulse/R

DC120-quxian
