Low Temperature rise Single Inlet Forward Centrifugal Fans

Inquiry Form

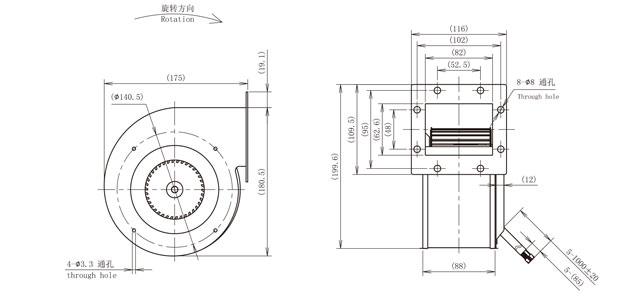

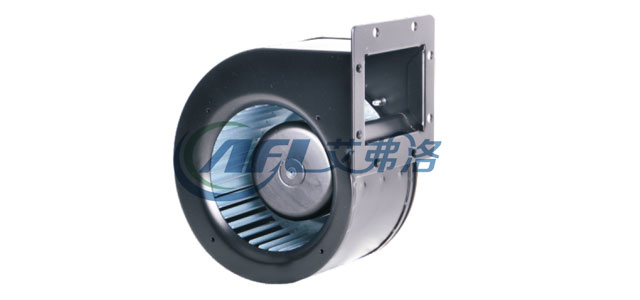

DC133-datu DC133-erwei

Meterial: Galvanised sheet steel

Type of protection IP42

Approvals CCC CE

Insulation class B
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.

Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.

AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.

Specifications
Type Curve  Nominal voltage Speed Power input Current
draw
Sound pressure level

Perm. amb.
tenip.

F3P133-DC092-006 [DC] [rpm] [W] [A] [dB] [℃]
310 2040 48 0.15 63 -25~+60

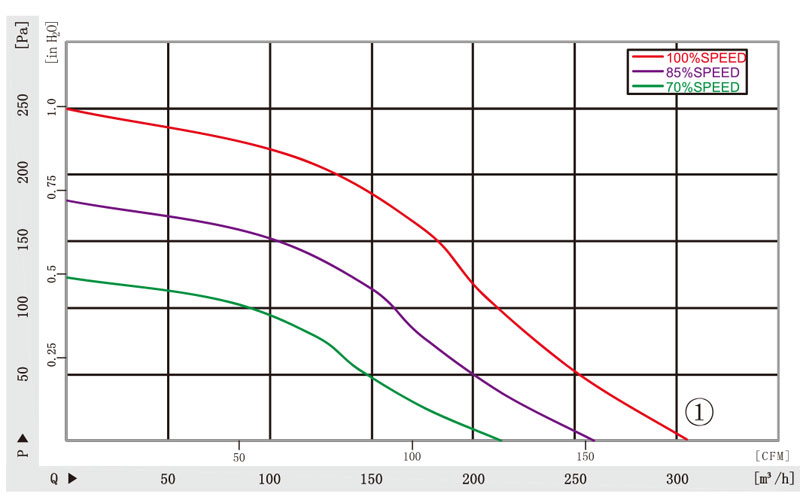

Curves

SIGNAL COLOR SPEC
Vs RED DC310V
GND BLACK GND
Vcc WHITE DC15V
Vsp YELLOW 0-10VDC/PWM
TACH BLUE 12 Pulse/R

DC133-quxian
