high temperature AC Forward Curved Centrifugal Fan

Inquiry Form

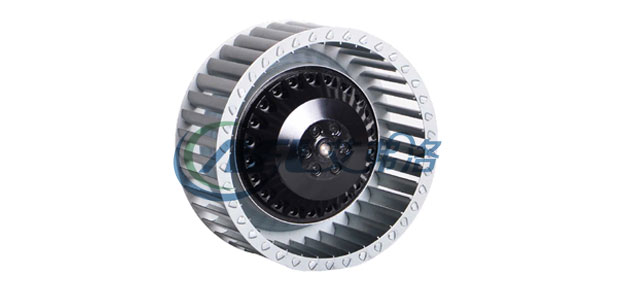

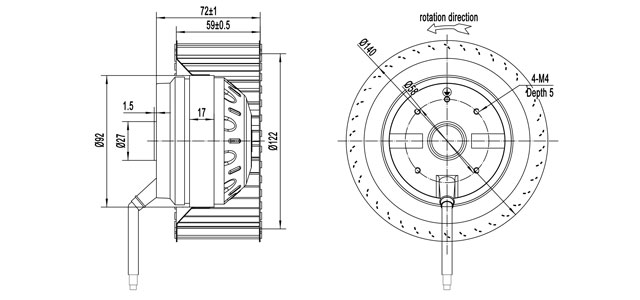

140-60-datu 140-60-erwei

material:Galvanised sheet steel

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
F2E140-060A-AA00 220/230 50 0.30 68 2300 2 340 /180 58 -30/+60 ① CCC,CE,RoHS
220/230 60 0.40 85 2400 2 305/180 63 -30/+60 ② CCC，CE,RoHS

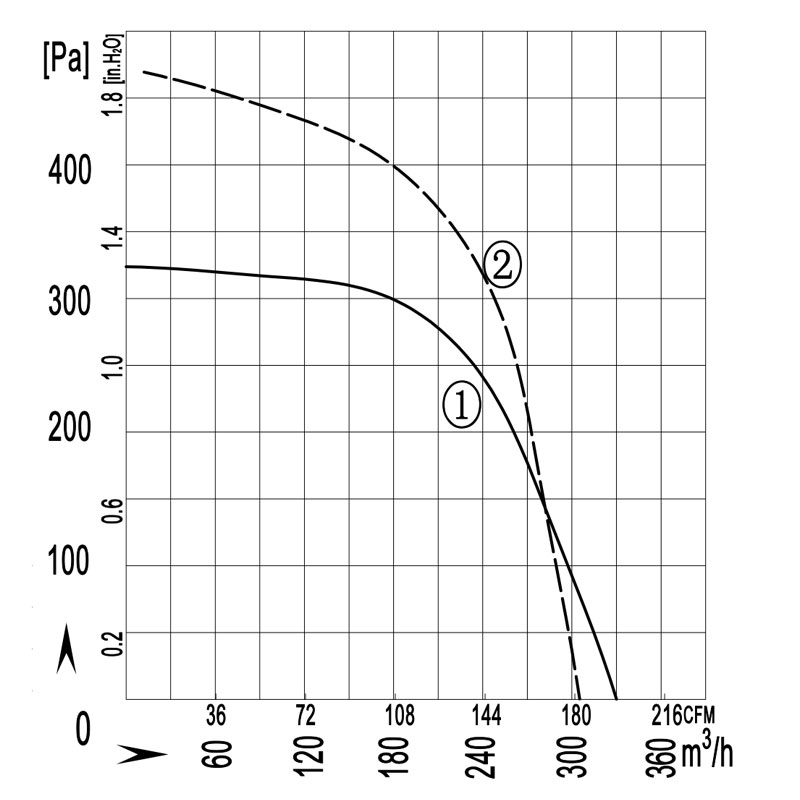

140-60-quxian
