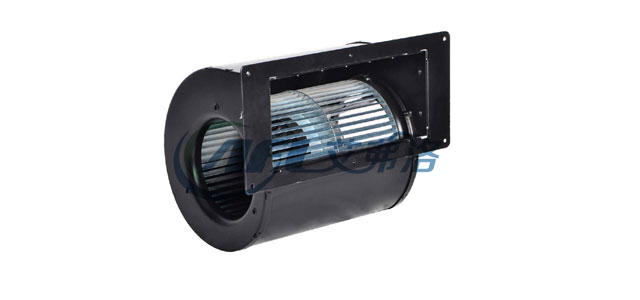

F146-190S Forward Centrifugal Fan
Inquiry Form
material:Galvanised sheet steel
Protection Class: IP44
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.
Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |

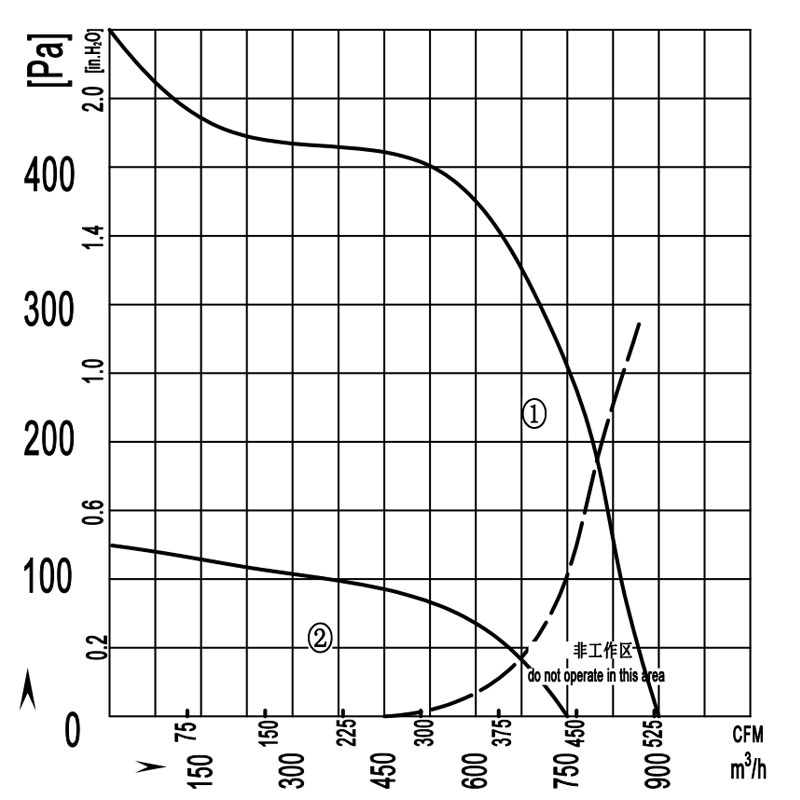

| Type | V | Hz | A | W | rpm | uF | m3/h/CFM | dB(A) | Min/Max(℃) | # | |
| F2E146-190S-AG00 | 220/230 | 50 | 1.2 | 250 | 1500 | 6 | 900/530 | 60 | -30/+60 | ② | CCC,CE,RoHS |
| F4E146-190S-AE00 | 220/230 | 50 | 0.54 | 100 | 1320 | 3 | 750 /510 | 52 | -30/+60 | ① | CCC,CE,RoHS |
