F150-70W Forward Centrifugal Fan

Inquiry Form

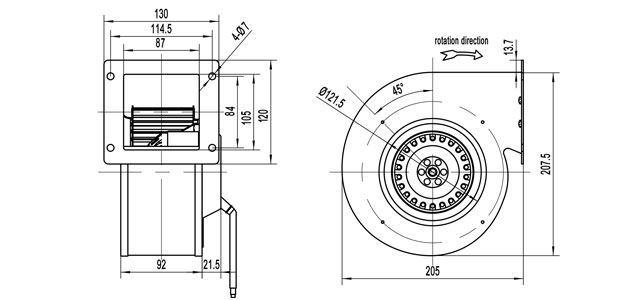

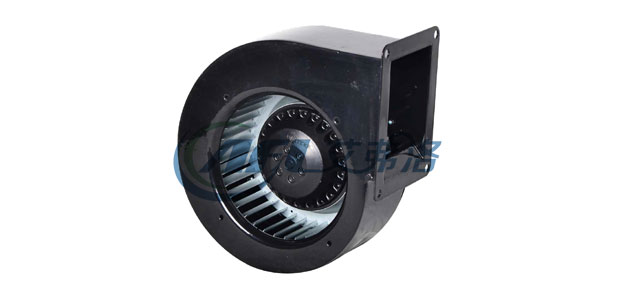

150-70W-datu 150-70W-erwei

material:Galvanised sheet steel

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.

Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
F2E150-070W-AE00 220/230 50 0.83 183 2300 4 530 /307 63 -30/+60 CCC,CE,RoHS
220/230 60 1.04 230 2200 4 480 /278 68 -30/+60 CCC,CE,RoHS

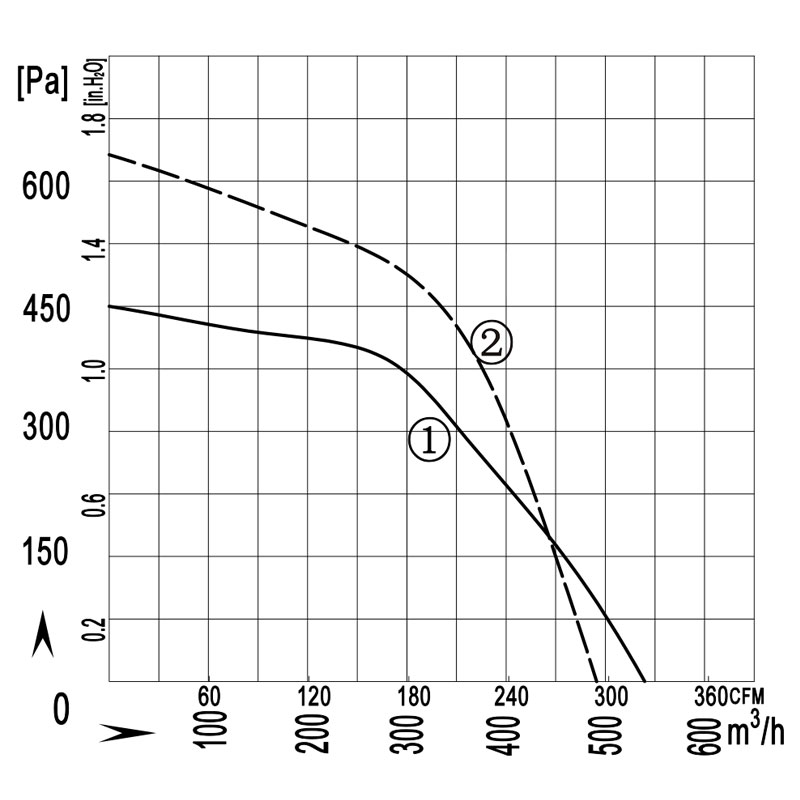

150-70W-quxian
