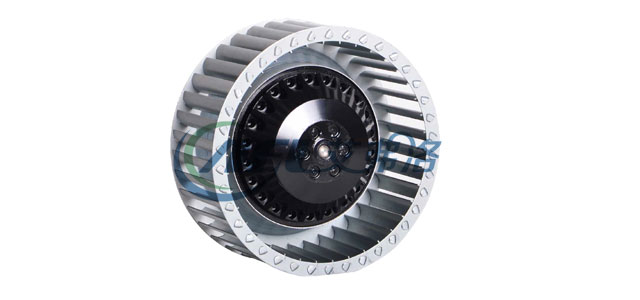

Galvanised sheet steel Centrifugal Fans

Inquiry Form

160-60-datu 160-60-erwei

material:Galvanised sheet steel

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
F2E160-060A-AE00 220/230 50 1.0 230 1800 4 510/310 69 -30/+60 CCC,CE,RoHS
F4E160-060A-ACC0 220/230 50 0.3 68 1400 2 400/230 58 -30/+60 CCC,CE,RoHS

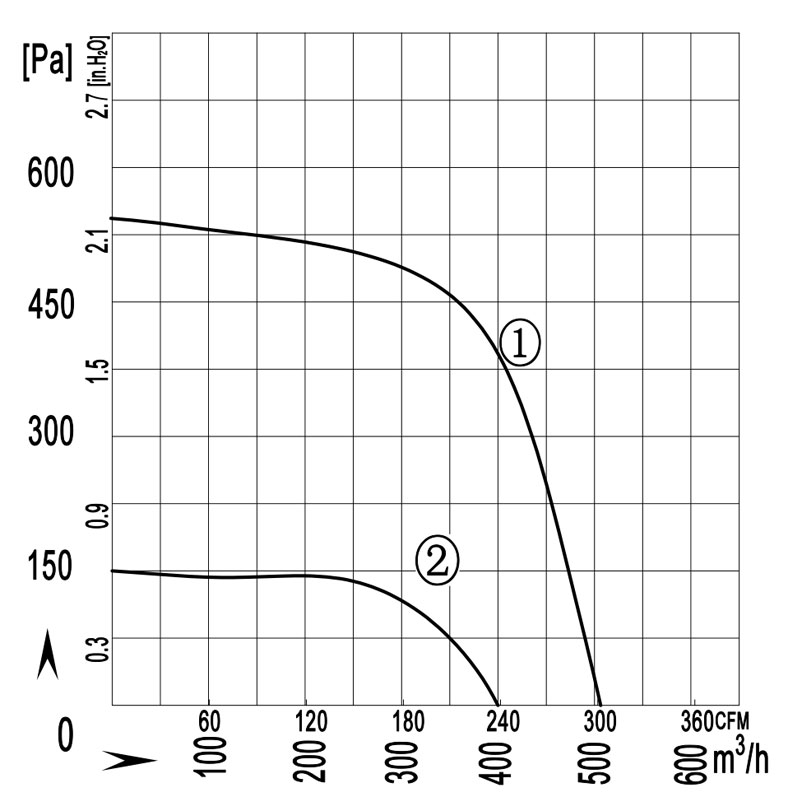

160-60-quxian
