material:Galvanised sheet steel
Protection Class: IP44
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.
Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.
Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |

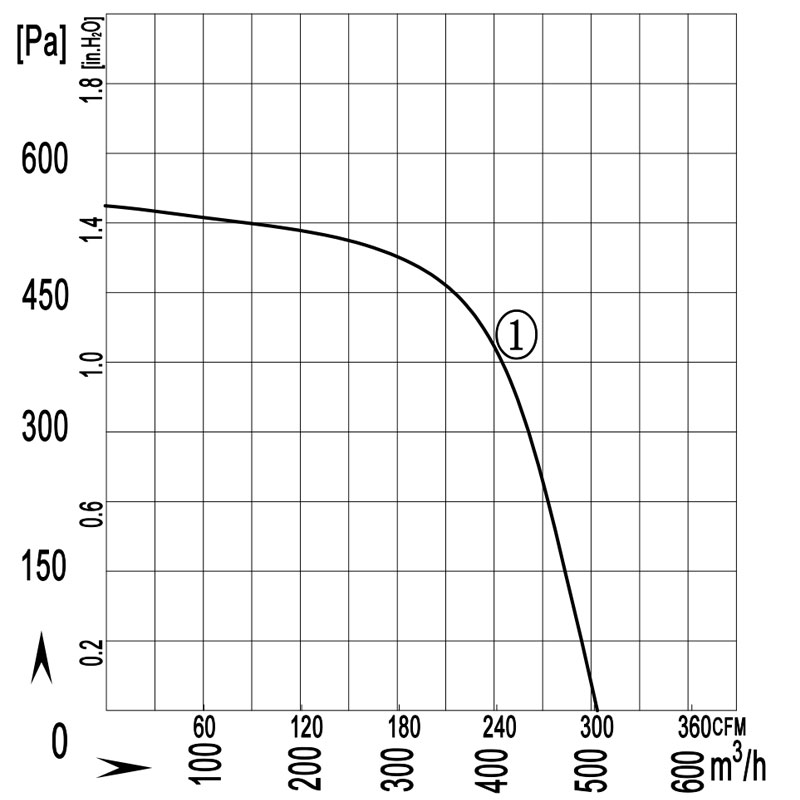

Type | V | Hz | A | W | rpm | uF | m3/h/CFM | dB(A) | Min/Max(℃) | # | |
F2E160-060W-AE00 | 220/230 | 50 | 1.00 | 230 | 1800 | 4 | 535 /310 | 63 | -30/+60 | ① | CCC,CE,RoHS |
