high heat centrifugal fan impeller

Inquiry Form

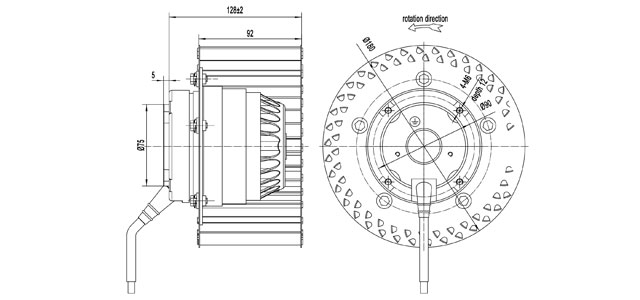

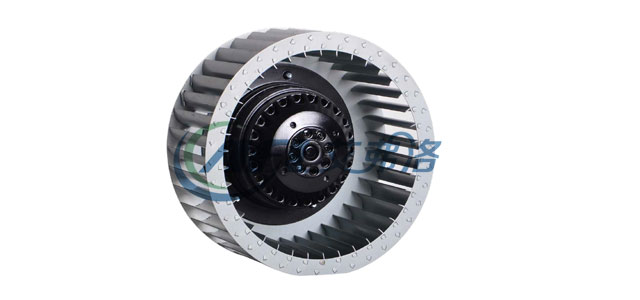

180-92-datu 180-92-erwei

material:Galvanised sheet steel

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

VoltageFrequencyCurrentInput PowerSpeedCapacitorAir FlowNoiseTemperature Curve No. Approvals
TypeVHzAWrpmuFm3/h/CFMdB(A)Min/Max(℃)#
F2E160-060W-AE01220/230501.0023018004535 /31063-30/+60CCC,CE,RoHS

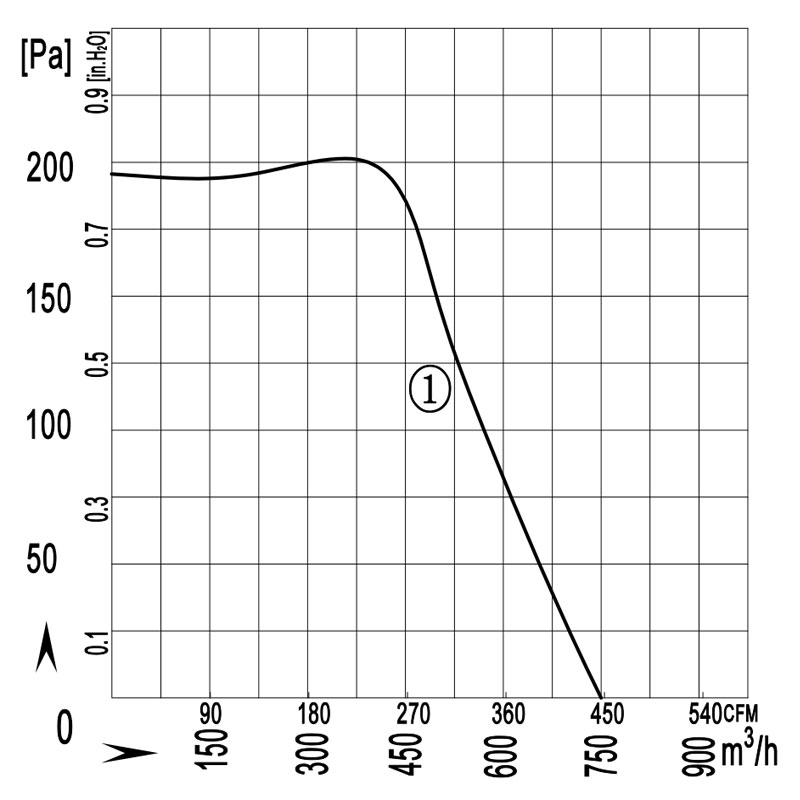

180-92-quxian
