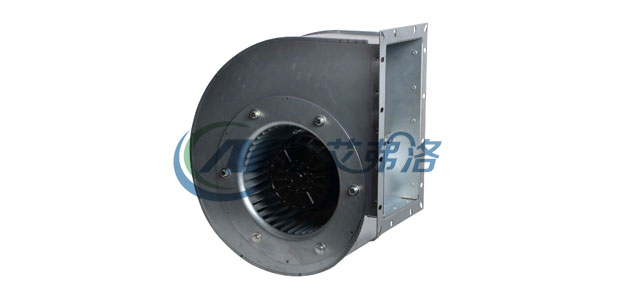

F250-102W Forward Centrifugal Fan
Inquiry Form
material:Galvanised sheet steel
Protection Class: IP54
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.
Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
|
Type |
V |
Hz |
A |
W |
rpm |
uF |
m3/h/CFM |
dB(A) |
Min/Max(℃) |
# |
|
|
F4D250-102W-AT00 |
380/400 |
50 |
1.6 |
850 |
1350 |
/ |
3300/1941 |
80 |
-30/+60 |

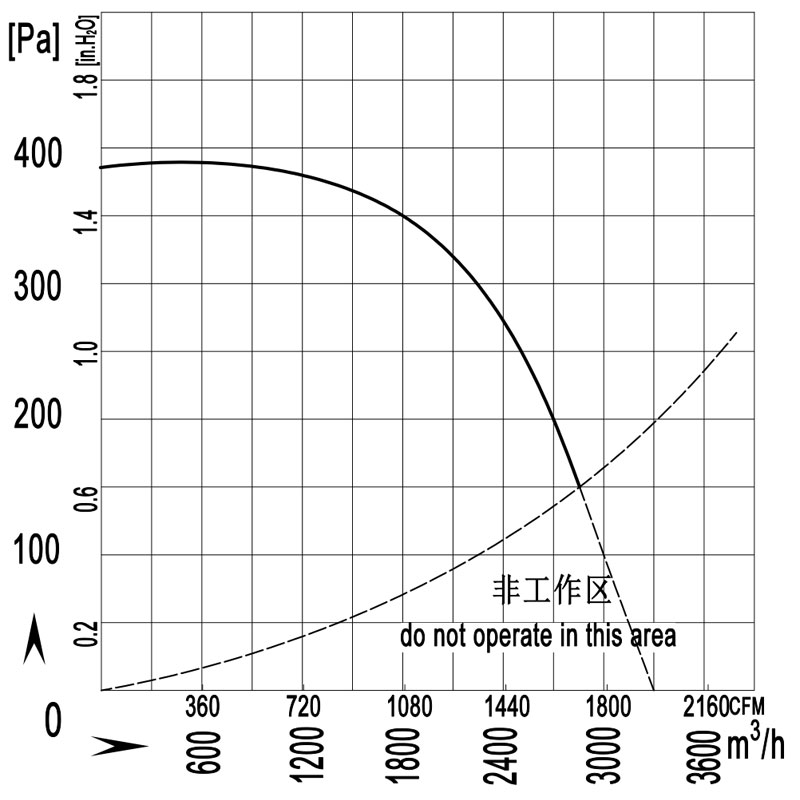

① |
CCC ,CE，RoHS |
